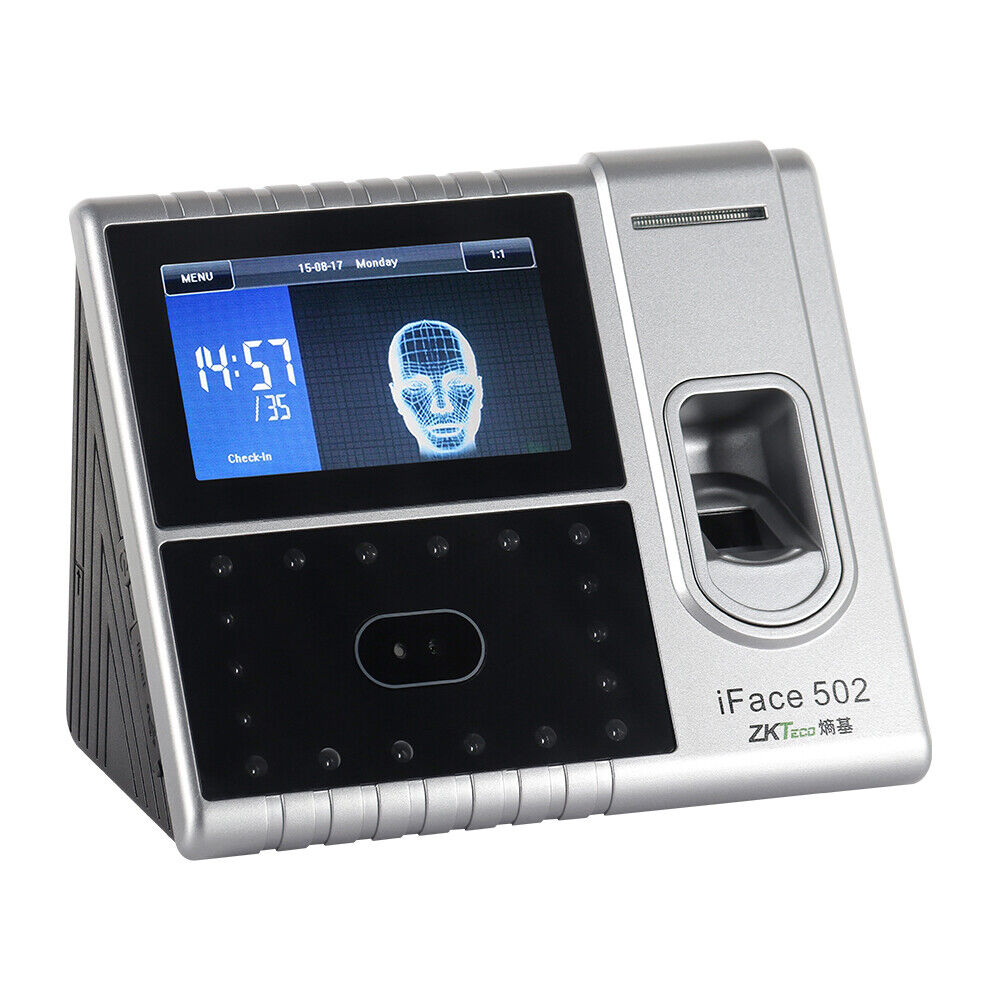

ZK iface502 Time Attendance Machine Biometric Fingerprint Face Recognition with WIFITime Clock Access Control System , 4.3 TFT touch screen , Hi-Res Infrared Camera , Card Reading , Wiegand Signal – Silver & Black

Name: ZK iface502 Time Attendance Machine Biometric Fingerprint Face Recognition with WIFITime Clock Access Control System , 4.3 TFT touch screen , Hi-Res Infrared Camera , Card Reading , Wiegand Signal - Silver &amp; Black
SKU: ZKT-IFACE502
Availability: InStock

Original price was: $ 170.Current price is: $ 166.

Attendance Machine Fingerprint Face Recognition

Expert Description

500 face and 2,000 fingerprint templates
Multi-language
High verification speed
Advanced and user-friendly UI
Optional built-in battery backup, providing approximately 4 hours of continuous operation
New Framework firmware, easy to extend functions and customize client’s requirements
One face template is registered for one user only
Able to detect whether the face is an
actual face or a photo, enhancing the security level of verification
iFace 502 Facial multi-biometric time & attendance and access control terminal supports up to 500 face templates, 2,000 fingerprint templates and 10,000 cards.
With ZK latest hardware platfrom and algorithm, it offers brand new UI and user-friendly operation interface to provide smooth user experience.
With advanced face algorithm and multi-biometric verification technology, the terminal’s security level of verification is significantly enhanced.

Expert Specification

1.CPU: Multi-Bio CPU 630 MHz

2.Memory: 256M Flash, 64M SDRAM

3.Hardware Platform: ZMM220 Multi-Medium Development Platform

4.Fingerprint Sensor: Optical Fingerprint Sensor without film

5.Camera: High Resolution Infrared Camera

6.Display: 4.3 TFT touch screen

7.Face capacity: 500 (1:N)

8.Fingerprint capacity:2000

9.Card capacity:10000(optional)

10.Logs capacity: 100,000

11.Algorithm Version: Face 7.0 & Finger 10.0

13.Communication: TCP/IP,RS232/485

14.Time attendance Standard functions: Automatic Status Switch, Self-Service Query, Work Code, T9 input, 9 digit user ID, DLST

15..Access control interfaces for: 3rdparty electric lock, door sensor, exit button

16.Wiegand Signal: Output

17.Power supply:12V3A

18.Verification Speed:2 sec

19.Operating temp:0C- 45 C

20.Operating Humidity:20%-80%

16 People watching this product now!

SKU: ZKT-IFACE502 Categories: Security, Time Attendance

Description

ZKTeco iFace 502 Face Detection & Fingerprint Attendance System

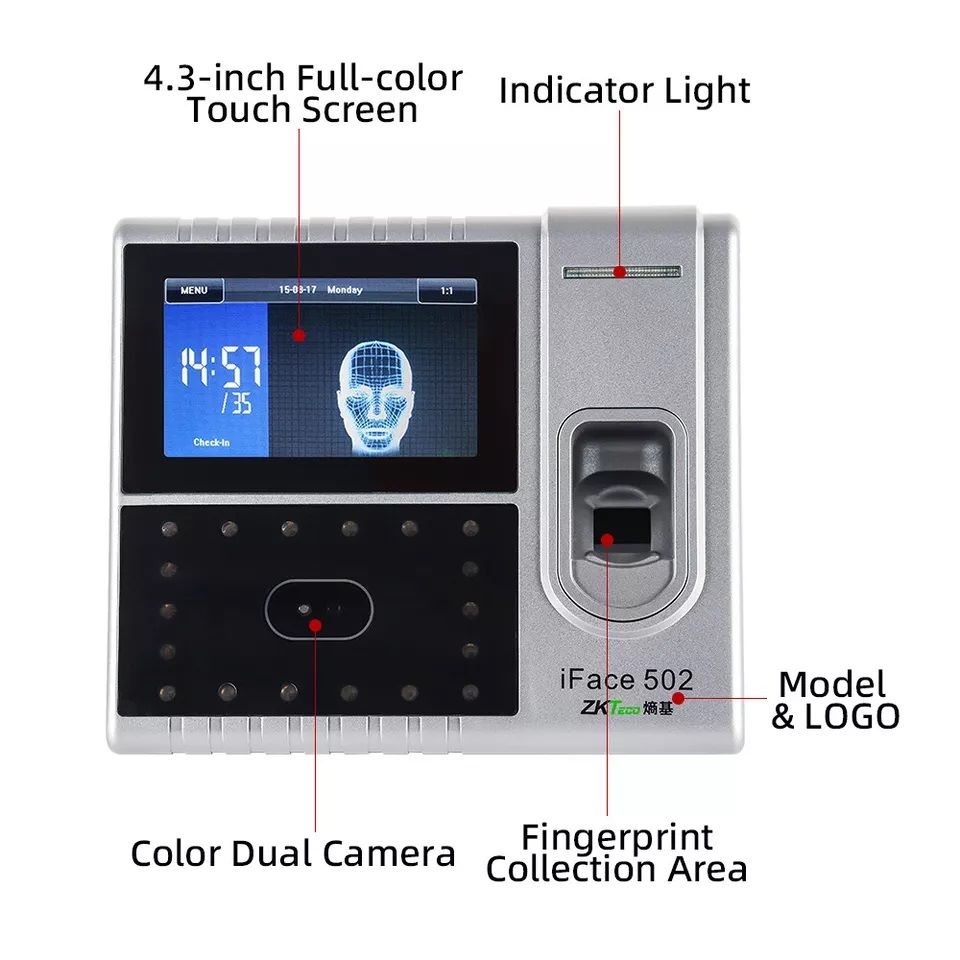

Identification methods include Face, Fingerprint/RFID and/or Password
Elegant ergonomic design
4.3’’ TFT touch screen is user-friendly and very intuitive
6 user-defined function keys
Contact relays for door access control (wires to door strike or 3rd party panel)
Web server management software via IE browser
Extendable scheduled bell
Infra-red optical system enables user-identification in poorly lit environments
Optional built-in battery backup provides approx 4 hours continuous operation
Optional built-in wireless Wi-Fi or GPRS for wireless communication
Built-in contacts for 3rd party electric lock, door sensor, alarm, exit button, or bell
Wiegand Output for connections to 3rd party access control panels
SPECS
1. CPU: Multi-Bio CPU 630 MHz

2. Memory: 256M Flash, 64M SDRAM

3. Hardware Platform: ZMM220 Multi-Medium Development Platform

4. Fingerprint Sensor: Optical Fingerprint Sensor without film

5. Camera: High Resolution Infrared Camera

6. Display: 4.3 TFT touch screen

7. Face capacity: 500 (1:N)

8. Fingerprint capacity: 2000

9. Card capacity: 10000(optional)

10. Logs capacity: 100,000

11. Algorithm Version: Face 7.0 & Finger 10.0

12. Battery: 2000mAh backup battery

13. Communication: TCP/IP,RS232/485

14. Time attendance Standard functions: Automatic Status Switch, Self-Service Query, Work Code, T9 input, 9 digit user ID, DLST

15. Access control interfaces for: 3rdparty electric lock, door sensor, exit button

16. Wiegand Signal: Output

17. Power supply: 12V3A

18. Verification Speed: 2 sec

19. Operating temp: 0C- 45 C

20. Operating Humidity: 20%-80%
