Original price was: $ 515.$ 480Current price is: $ 480.

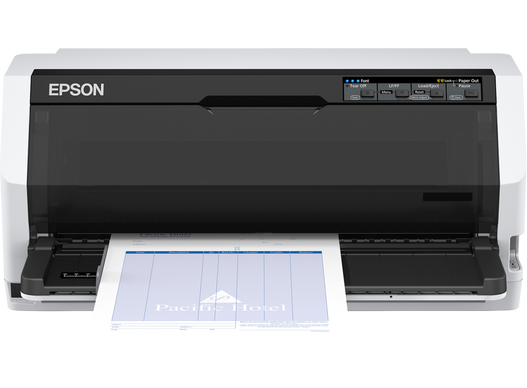

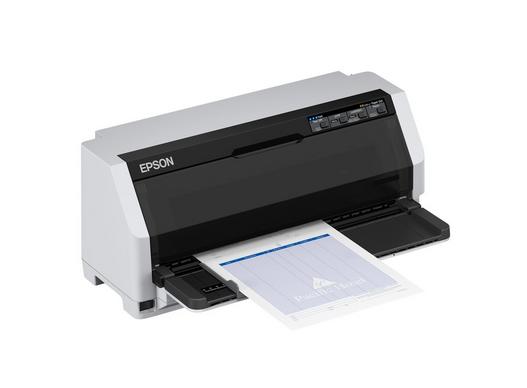

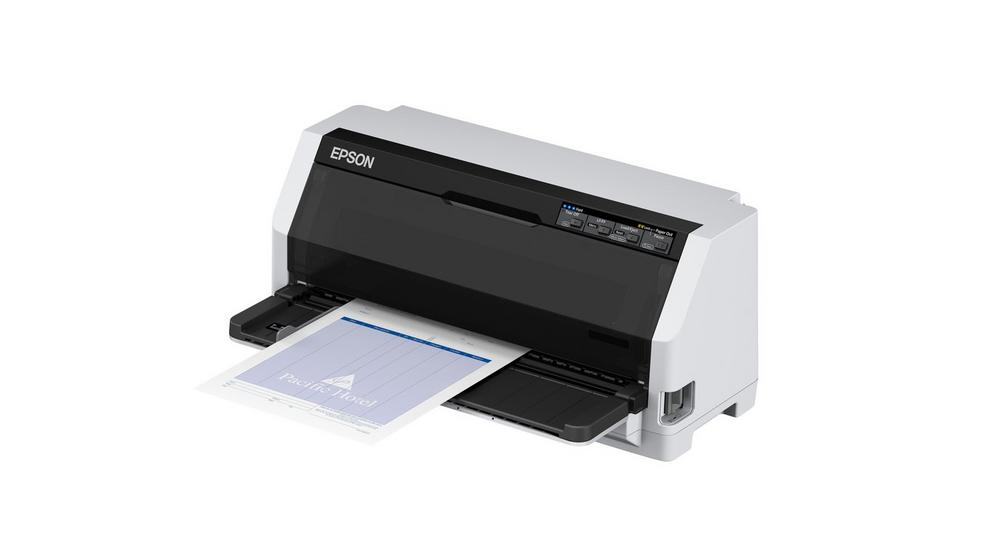

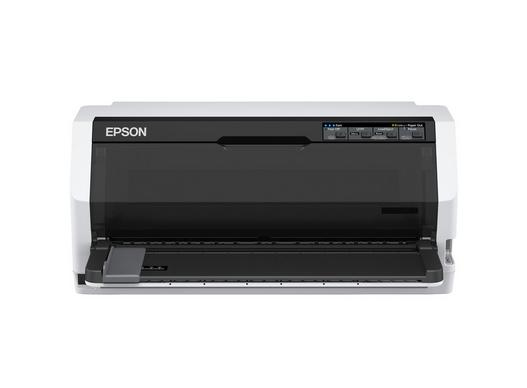

EPSON LQ-690II DOT MATRIX PRINTER
| Printing | |
| Colour: |  |
| Maximum print speed: | 487 cps |
| Maximum printing width (columns): | 106 |
| Maximum print speed (draft): | 366 cps |
| Maximum print speed (LQ): | 121 cps |
| Maximum number of copies: | 7 copies |
| Built-in barcodes: | CODABAR (NW-7), Code 39, Code-128 Codabar Library, EAN128, EAN13, Industrial 2/5, Interleaved 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E |
| Character sets: | ISO 8859-15, Italic, PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, Roman 8 |
| Paper handling | |
| Paper feed: | Manual, Pull tractor |
| Paper tray media types: | Envelopes, Labels, Plain paper, Roll |
| Continuous paper thickness range: | 0.065 – 0.49 mm |
| Label thickness range: | 0.16 – 0.19 mm |
| Multi-part paper thickness range: | 0.12 – 0.49 mm |
| Single sheet thickness range: | 0.065 – 0.15 mm |
| Features | |
| Product colour: | Black, White |
| Buffer size: | 128 KB |
| Sound pressure level (printing): | 59 dB |
| Country of origin: | Indonesia |
| Ports & interfaces | |
| Standard interfaces: | Parallel, USB 2.0 |
| Endurance | |
| Print head: | 24-pin |
| Print head life: | 400 million characters |
| Ribbon life: | 10 million characters |
| Mean time between failures (MTBF): | 20000 h |
| Power | |
| Power consumption (typical): | 38 W |
| Power consumption (standby): | 3 W |
| Operational conditions | |
| Operating temperature (T-T): | 5 – 35 °C |
| System requirements | |
| Windows operating systems supported: |  |
| Bundled software: | Epson Status Monitor |
| Weight & dimensions | |
| Width: | 480 mm |
| Depth: | 301 mm |
| Height: | 211 mm |
| Weight: | 6.8 kg |
| VEIKK , A50 , DRAWING , TABLET , 10 |
{attribute:VEIKK , A50 , DRAWING , TABLET , 10 |
|---|
Get the quality you trust – sharp, black text and crisp colour graphics – with this affordable MFP.
Quickly and easily print with an MFP that's designed to fit into your workspace like a glove.
Print, scan, and copy from virtually anywhere, and get simple setup on your phone. 3
| Functions | Print, copy, scan, fax |
|---|---|
| Print speed black (ISO, A4) | Up to 18 ppm 1 |
| Print Speed Color (ISO) | Up to 4 ppm 1 |
| Manual (driver support provided) | |
| Duty cycle (monthly, letter) | Up to 20,000 pages (Duty cycle is defined as the maximum number of pages per month of imaged output.) |
| Duty cycle (monthly, A4) | Up to 20,000 pages (Duty cycle is defined as the maximum number of pages per month of imaged output.) |
| Print quality black (best) | Up to 600 x 600 dpi 4 bits |
| Print quality color (best) | Up to 600 x 600 dpi 4 bits |
| Print languages | SPL |
| Print technology | Laser |
| Connectivity, standard | Hi-speed USB 2.0 port; Fast Ethernet 10/100Base-Tx network port; Wireless 802.11 b/g/n |
| Mobile printing capability | HP Smart App; Apple AirPrint™; Mobile Apps; Mopria™ Certified; Wi-Fi® Direct Printing; Google Cloud Print™ 4 May require a firmware upgrade to be compatible, download at http://www.hp.com/go/support |
| Network capabilities | Via built-in 10/100 Base-TX networking |
| Wireless capability | Yes, built-in Wi-Fi 802.11 b/g/n |
| Minimum System Requirements for Macintosh | Apple®OS X El Capitan (v10.11), macOS Sierra (v10.12), macOS High Sierra (v10.13), 1.5 GB available hard disk space, Internet required, USB |
| Minimum System Requirements | Windows® 10, 8.1, 8, 7: 32/64-bit, 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer |
| Digital sending standard features | Scan to WSD; PC Scan |
| Display | 2-Line LCD |
| Processor speed | 800 MHz |
| Maximum Memory | 128 MB |
| Memory | 128 MB |
| Compatible Operating Systems | Windows 11; Windows 8; Windows 7; macOS 10.11 El Capitan; macOS 10.12 Sierra; macOS 10.13 High Sierra; macOS 10.14 Mojave 4 (Windows 7 or higher) |
| Paper handling input, standard | 150 sheet input tray |
| Paper handling output, standard | 50 sheet output bin |
| Finished output handling | Sheetfed |
| Media types | Plain, Light, Heavy, Extra Heavy, Coloured, Preprinted, Recycle, Labels, Bond, Glossy |
| Media sizes supported | Tray1: A4; A5; A6; B5 (JIS); Oficio 216 x 340. Tray2: Not supported; Optional Automatic duplexer: Not supported |
| Media sizes, custom | 76 x 148.5 to 216 x 356 mm |
| Scanner type | Flatbed, ADF |
| Scan file format | PDF, JPG, TIFF |
| Enhanced scanning resolution | Up to 19,200 dpi |
| Scan resolution, optical | Up to 600 × 600 dpi (300 dpi for Mac OS) |
| Scan size (ADF), maximum | 216 x 356 mm |
| Scan size (ADF), minimum | 145 x 145 mm |
| Scan size, maximum | 216 x 297 mm |
| Scan speed (normal, A4) | Up to 15 ipm (black and white), up to 6 ipm (colour) |
| Automatic document feeder capacity | Standard, 40 sheets |
| Scan technology | Contact Image Sensor (CIS) |
| Copy speed (black, normal quality, A4) | Up to 14 cpm 5 |
| Copy speed (color, normal quality, A4) | Up to 4 cpm 5 |
| Copy resolution (black text) | Up to 600 x 600 dpi (flatbed); Up to 600 x 600 dpi |
| Copy resolution (color text and graphics) | Up to 600 x 600 dpi (flatbed); Up to 600 x 600 dpi |
| Copies, maximum | Up to 999 copies |
| Copy reduce / enlarge settings | 25 to 400% |
| Copier settings | Copies; Original Size; Reduce/Enlarge; Darkness; Original Type; Collation; 2-Up; 4-Up; ID Copy; Adjust Background; Auto Fit Copy; Colour Mode |
| Faxing | Yes |
| Fax Transmission Speed | 33.6 kbps |
| Fax Resolution Black (best) | Up to 300 x 300 dpi |
| Fax Broadcast Locations | 210 |
| Fax memory | Up to 400 pages |
| Fax Speed Dials, Maximum Number | Up to 200 numbers |
| Power consumption | 300 watts (active printing), 38 watts (ready), 1.9 watts (sleep), 0.2 watts (manual off) 6 |
| Power | 220-volt input voltage: 220 to 240 VAC, 50/60 Hz |
| Operating humidity range | 10 to 80% RH (non-condensing) |
| Recommended operating humidity range | 20 to 70% RH (non-condensing) |
| Operating temperature range | 10 to 30°C |
| Typical electricity consumption (TEC) number | 0.876 kWh/Week (Blue Angel); 1.093 kWh/Week (Energy Star) 7 (Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Energy Star value typically based on measurement of 115V device and 230V for Blue Angel.) |
| Energy savings feature technology | HP Auto-Off Technology |
| Ecolabels | CECP 8 |
| Energy star certified | No |
| Security management | Password-protected network embedded Web server; Enable/disable Network ports; SNMPv1 community password change; SNMPV2&V3; IPSec; Filtering : MAC, IPv4, IPv6 |
| Minimum dimensions (W x D x H) | 406 x 363 x 344.1 mm 9 (Dimensions vary as per configuration) |
| Maximum dimensions (W x D x H) | 421.9 x 422.9 x 344.1 mm 9 (Dimensions vary as per configuration) |
| What's in the box | HP Color Laser MFP 179fnw; Preinstalled introductory HP Laser Printer Black print cartridge (700 pages); HP Laser Printer Cyan print cartridge (500 pages); HP Laser Printer Yellow print cartridge (500 pages); HP Laser Printer Magenta print cartridge (500 pages); Imaging drum; Toner collection unit; Setup poster; Reference guide; Support flyer; Warranty guide; No CD-ROM; Power cord; USB cable; Tel line cable 11 |
| Number of print cartridges | 4 (1 each black, cyan, magenta, yellow) |
Key Specifications |
|
|---|---|
| Printer Type | Laser |
| Amount of Input Trays | 3 |
| Tray Capacity | 100-sheet multipurpose tray 1, 250-sheet input tray 2 |
| Output Tray Capacity | Up to 150 sheets |
| Monochromatic / Color | Monochromatic |
| Two-sided Printing | Automatic |
| Tray 1 Paper Size | A4, A5, A6, B5 (JIS), B6 (JIS), 16K (195 x 270 mm, 184 x 260 mm, 197 x 273 mm), 10 x 15 cm, Oficio (216 x 340 mm), tarjetas postales (JIS individual, JIS doble), sobres (DL, C5, B5) |
| Tray 2 Paper Size | A4, A5, A6, B5 (JIS), B6 (JIS), 16K (195 x 270 mm, 184 x 260 mm, 197 x 273 mm), 10 x 15 cm, Oficio (216 x 340 mm), tarjetas postales (JIS individual, JIS doble), sobres (DL, C5, B5) |
| Tray 3 Paper Size | A4; A5; A6; B5 (JIS); B6 (JIS); 16K (195 x 270 mm, 184 x 260 mm, 197 x 273 mm); 10 x 15 cm; Oficio (216 x 340 mm); tarjetas postales (un JIS, doble JIS) |
Printer |
|
| Printing Speed (Black) | Up to 63 ppm |
| Printing Resolution (Black) | Up to 1200 x 1200dpi |
| Maximum Duty Cycle | Up to 250.000 pages monthly |
Ink |
|
| Compatible Ink | HP 151A Black Original LaserJet Toner Cartridge (~3,050 pages), W1510A; HP 151X Black Original LaserJet Toner Cartridge (~9,700 pages), W1510X |
Connectivity |
|
| Wi-Fi | No |
| USB | USB 2.0 Connection |
| Ethernet | Gigabit Ethernet 10/100/1000 |
General |
|
| Supported Computer Operating Systems | Windows 11; Windows 10; Windows 7; Android; iOS; SO móviles; macOS 10.15 Catalina; macOS 11 Big Sur; macOS 12 Monterey |
Physical Characteristics |
|
| Color | Black and White |
| Dimensions (W x H x D) | 381 x 634 x 241mm |
| Shipping Weight | 10.2kg |
| Weight | 8.22kg |
| Scanner type | ADF CIS scanning technology Flatbed |
|---|---|
| Digital sending optional features | Send to email Send to PC |
| Scan resolution, optical | Up to 600 dpi (color and mono, ADF) Up to 1200 dpi (color and mono, flatbed) |
| Duty cycle (daily) | Recommended daily duty cycle: 1500 pages (ADF) |
| Bit depth | 24-bit (external), 48-bit (internal) |
| Levels of grayscale | 256 |
| Multifeed detection | No |
| Scan size, maximum | 8.5 x 11.7 in |
| Media types | Paper (banner, inkjet, photo, plain), envelopes, labels, cards (greeting, index) |
| Media weights, supported ADF | 16 to 28 lb |
| Scan file format | For text and image pages: PDF, JPEG, PNG, BMP, TIF, Text(TXT), Rich Text(RTF), SEARCHABLE PDF, PDF/A, Word(DOC), Word(DOCX), Excel(XLS), Excel(XLSX), CSV |
| Automatic document feeder capacity | Standard, 60 sheets |
| Automatic document feeder scan speed | Up to 25 ppm/50 ipm (b&w, gray and color, 300 dpi) |
| Scanning options (ADF) | Single-pass Duplex scanning |
| Scan size (ADF), maximum | 8.5 x 122 in |
| Compatible Operating Systems | Windows 11 Windows 10 Windows 8 Windows 8.1 Windows 7 Windows Server macOS 10.14 Mojave macOS 10.15 Catalina macOS 11 Big Sur macOS 12 Monterey Linux expert zone |
| Mac compatible | Yes |
| Twain version | Version 2.4 |
| Connectivity, standard | USB 2.0 |
| Power | Input Voltage: 100 to 240 VAC |
| Power consumption | 12.90 watts (Active - Scanning), 5 watts (Ready), 1.11 watts (Sleep), 0.06 (Auto-Off), 0.06 (Manual-Off) |
| Ecolabels | CECP IT ECO Declaration SEPA EPEAT® Silver registered |
| Operating temperature range | 50 to 95°F |
| Recommended operating humidity range | 30 to 70% RH |
| Minimum dimensions (W x D x H) | 19.4 x 12.8 x 5.2 in |
| Weight | 11.9 lb |
| Software included | HP Scan Software, HP Scanner Device Driver, HP WIA scan driver, HP TWAIN scan driver, HP Scanner Tools Utility |
| What's in the box | HP ScanJet Pro 2600 f1 Scanner Install Guide Supporting flyers Cushions USB cable Power adapter Power cords |
Only half weight and volume of the traditional keyboard version,but more convenient and powerful.
Printing with thermal technology, No ink ribbon or toner refill needed.
The label paper produced by NIIMBOT is non-toxic and harmless, BPA free.
Built-in 1500 mAh rechargeable battery, no need to buy extra batteries.3 months of use on a single charge.
Printing accuracy increased to 203 dpi,content size from 0.2 to 0.5 inches.
