GIGABYTE B650M DS3H (AM5/ LGA 1718/ AMD/ B650/ Micro ATX/ DDR5/ PCIe 4.0 M.2/ PCIe 4.0/ USB 3.2 Gen2X2 Type-C/ 2.5GbE LAN/Motherboard)
$ 228

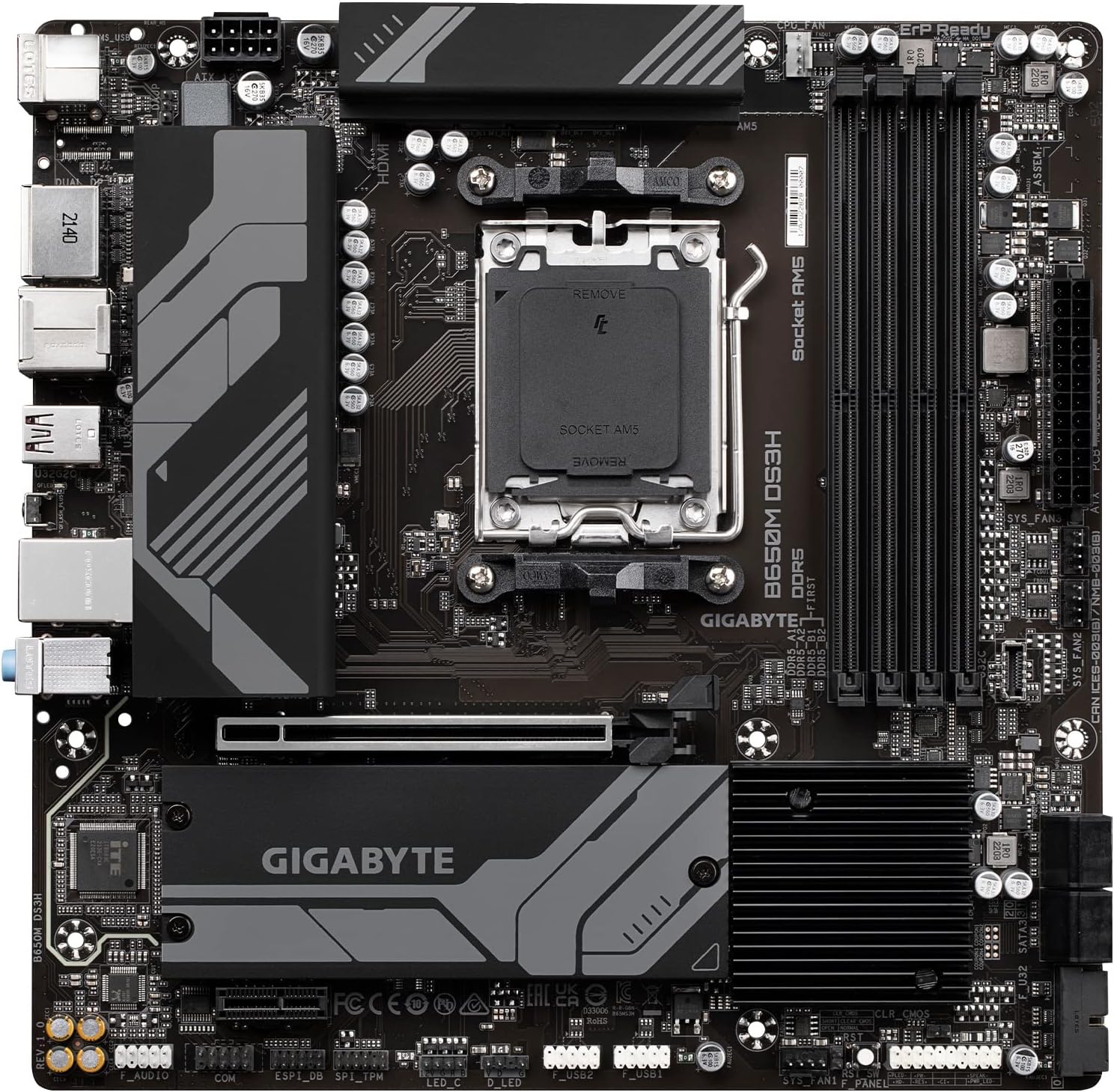

GIGABYTE B650M DS3H DDR5 Motherboard
EXPERT FEATURES
- AMD AM5 Socket: Supports AMD Ryzen 7000 Series Processors
- DDR5 Compatible: 4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- Sturdy Power Design: Direct 6+2+1 Phases Digital VRM Solution
- Comprehensive Thermal Design: Advanced Thermal Design, M.2 Thermal Guard
- Next Gen Connectivity: PCIe 5.0, NVMe PCIe 4.0 x4 M.2, SuperSpeed USB 3.2 Gen 2×2 Type-C
- Fast Networking: 2.5GbE LAN
- Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU”
EXPERT SPECS
Brand | GIGABYTE |
---|---|
Model | B650M DS3H (rev. 1.0) |
Part Number | B650M DS3H (rev. 1.0) |
CPU Socket Type | AM5 |
---|---|
CPU Type | AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors |
Chipset | AMD B650 |
---|
Number of Memory Slots | 4x288pin (DDR5) |
---|---|
Memory Standard | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules |
Maximum Memory Supported | 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
Channel Supported | Dual channel memory architecture |
ECC Supported | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
Buffer Supported | Un-buffered |
Memory Feature | Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (Please refer “Memory Support List” for more information. |
PCI Express 4.0 x16 | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) |
---|---|
PCI Express x1 | 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
SATA 6Gb/s | 4 x SATA 6Gb/s |
---|---|
M.2 | 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) |
SATA RAID |
|
Audio Chipset | Realtek® Audio CODEC |
---|---|
Audio Channels |
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
Max LAN Speed | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
---|
Back I/O Ports | 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x DisplayPorts 1 x HDMI port 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks |
---|---|
PS/2 | 1 x PS/2 keyboard/mouse port |
Other Connectors |
|
---|
Form Factor | Micro ATX |
---|---|
Dimensions (W x L) | 24.4cm x 24.4cm |
Windows 11 | Support for Windows 11 64-bit Support for Windows 10 64-bit |
---|
