911-7E02-023
-12%
MSI PRO B760M-P DDR4 MOTHERBOARD (911-7E02-020)
Original price was: $ 128.$ 118Current price is: $ 118.
MSI PRO B760M-P DDR5 MOTHERBOARD (911-7E02-023)
Original price was: $ 145.$ 128Current price is: $ 128.
MSI B760M-P DDR5 MOTHERBOARD
| CHIPSET | INTEL B760 |
|---|---|
| CPU SUPPORT | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
| MEMORY | 4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| ONBOARD GRAPHICS | 1x HDMI™ Support HDMI™ 1.4, maximum resolution of 4K 30Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| STORAGE | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |

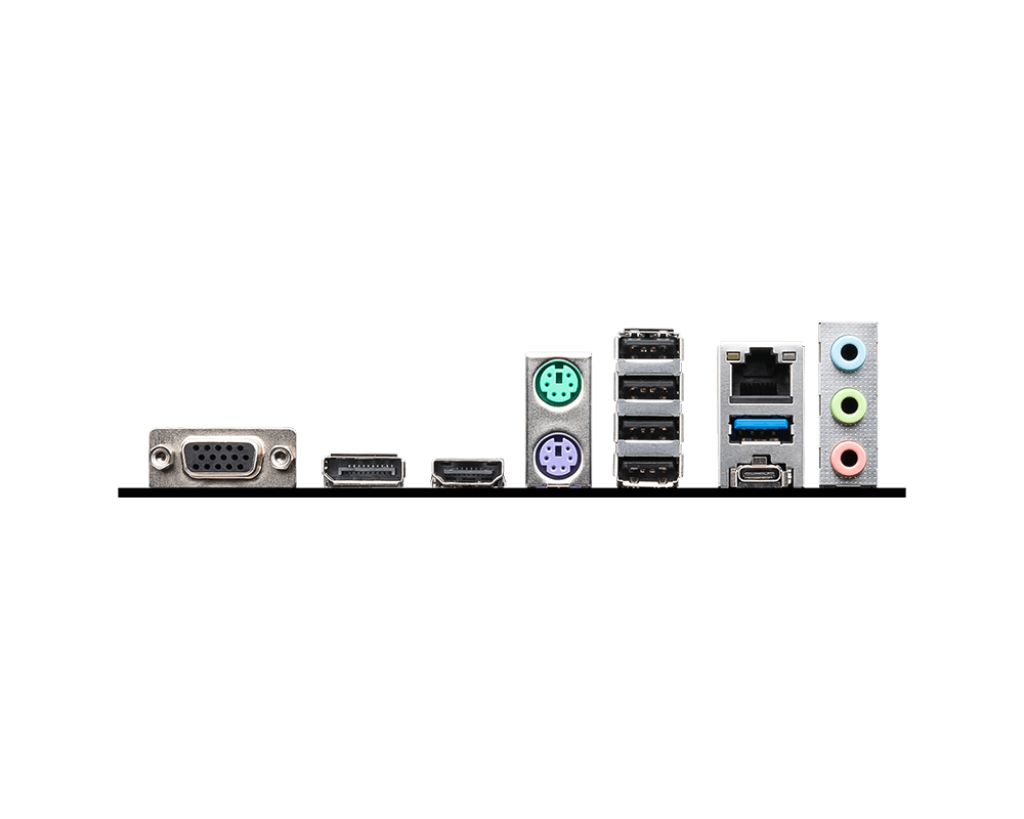

| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type C (Rear) |
| LAN | Realtek® RTL8111H Gigabit LAN |
| AUDIO | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| INTERNAL I/O | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
| LED FEATURE | 4x EZ Debug LED |
5
People watching this product now!
Description
Additional information
| VEIKK , A50 , DRAWING , TABLET , 10 |
{attribute:VEIKK , A50 , DRAWING , TABLET , 10 |
|---|
SHIPPING AND DELIVERY
Our delivery charges are calculated based on the distance between our warehouse and your location We strive to provide the best possible delivery experience for our customers and are committed to delivering your products as quickly and efficiently as possible If you have any questions or concerns regarding our delivery services, please feel free to contact us Our customer service team is always available to assist you and provide information or support you may need
Related products
1850W ATX Modular Mining PC Power Supply 6 GPU
Original price was: $ 139.$ 127Current price is: $ 127.
T.F.SKYWINDINTL 1800w Power Supply RX480 PSU Asic Bitcoin Miner Power Supply 1800W Atx Pico PSU Mining ETH ETC XMR ZEC BTB BTC
INTERFACE
20+4P *1
CPU 4+4P *1
6+2P* 12
IDE* 5
SATA *8
Features:
1.Support 6 pieces graphics card(Power is lower than 1800W)
2.1800W power supply, high efficiency,very quiet,stable performance.
3.With new big capacitor and big magnetic ring material, the performance is very stable.
4:with one year warrety
Package :
1800w psu *1
power tester *1
power cord *1
Please pay attention :
1: this psu is design forminer Mining,it can be used in normal computer but it will a little noisy when you use in normal computer , if you want a very quiet computer psu , do not buy this one and contact our sales to advise you one .
BIOSTAR PCIe X1 USB 3.0 Crypto Mining Expansion Card
$ 22
Product Overview Gaming in the Virtual Life & Mining in the Real World
Have you ever thought about the possibility to turn your gaming motherboard into a crypto mining base? Gaming and mining make you get achievements both in the virtual life and in the real world. The BIOSTAR Crypto Mining Card is designed for graphics card expansion to fully convert your gaming PC to a professional cryptocurrency mining rig that can handle much more graphics cards than those it could be equipped with.
Turn Your Gaming Motherboard into a Mining Base
The Crypto Mining Card with PCI-e x1 to 4 USB3.0 connectors is exclusively compatible with all BIOSTAR mining motherboards*, and select BIOSTAR gaming motherboards* and including the specific motherboards as following: RACING H170GT3, GAMING H170T, Hi-Fi H170S3H, Hi-Fi B150S1, Hi-Fi B150S1 D4, and TB150 PRO. To increase the mining profitability, this Crypto Mining Card can let mining enthusiasts set up their mining machine up to 8 slots for TB150 PRO to utilize more GPUs for more mining power**. Moreover, it can return your investment on your system by giving you the flexibility to create a mining rig to generate income from mining popular cryptocurrency like Bitcoin, Ethereum or Zcash.
Maximum Total Graphics Cards for Mining When Used Inconjunction with the Crypto Mining Card:
• Racing H170GT3 + Crypto Mining Card = Up to 7 Graphics Cards.
• GAMING H170T + Crypto Mining Card = Up to 7 Graphics Cards.
• Hi-Fi H170S3H + Crypto Mining Card = Up to 7 Graphics Cards.
• Hi-Fi B150S1 + Crypto Mining Card = Up to 6 Graphics Cards.
• Hi-Fi B150S104 + Crypto Mining Card = Up to 6 Graphics Cards.
• TB150 PRO + Crypto Mining Card = Up to 8 Graphics Cards. Features • BIOSTAR Crypto Mining Card turns you gaming machine crypto currency mining system, or expands your existing mining setup.
• Exclusively compatible with all BIOSTAR Mining Motherboards* & select BIOSTAR Gaming Motherboards*.
• Converts one PCIe x1 slot into four USB 3.0 PCIe connectors, so you can connect up to four USB PCIe riser cards**.
• Gives you the flexibility to use existing hardware to start Crypto mining, or increase the number of graphics cards in your current mining rig for maximum profitability.
• Powered by 1x 4-pin Molex Peripheral Connector.
Motherboard Biostar H81MHV3 LGA1150, H81, DDR3
$ 83
hipset Intel H81
CPU SUPPORT Intel Core i7 LGA 1150 Processor
Intel Core i5 LGA 1150 Processor
Intel Core i3 LGA 1150 Processor
Intel Pentium LGA 1150 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
MEMORY Support Dual Channel DDR3 1600/1333/1066 MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 16GB Memory
EXPANSION SLOT 1 x PCI-E x16 2.0 Slot
1 x PCI-E x1 2.0 Slot
STORAGE 2 x SATA3 Connector
2 x SATA2 Connector
USB 2 x USB 3.0 Port
2 x USB 2.0 Port
2 x USB 2.0 Header
LAN Realtek RTL8111G - 10/100/1000 Controller
INTEGRATED VIDEO By CPU model
Supports DX11.1
CODEC Realtek ALC662 6-Channel HD Audio
REAR I/O 1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.0 Port
2 x USB 2.0 Port
1 x HDMI Connector
1 x VGA Port
1 x RJ-45 Port
3 x Audio Connector
INTERNAL I/O 2 x USB 2.0 Header
2 x SATA3 6Gb/s Connector
2 x SATA2 3Gb/s Connector
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
1 x System Fan Header
1 x Serial Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 19cm x 17cm ( W x L )
OS SUPPORT Support Windows 7 / 8 / 8.1 / 10(x64)
BUNDLE SOFTWARE BIO-Remote2
Smart Speed LAN
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
FEATURES Windows 8 Ready
Supports Solid capacitor
Supports Charger Booster
Supports BIOS Online Update
Thermal Grizzly Aeronaut 8.5 W/M · K 1G Heat Sink
Original price was: $ 9.$ 8Current price is: $ 8.
Thermal Grizzly Aeronaut Thermal Paste 1 Gram Model TG-A-001-RS
Features :
Aeronaut thermal grease is the ideal beginner’s product with high effectiveness. Great surface protection, as well as good heat transfer capabilites make Aeronaut the ideal choice for users who want to optimize their cooling solution in an effective way, or maybe want to use an alternative to the thermal grease included with their hardware, with a remarkable cost effectiveness to boot.
very good thermal conductivity
long-term durability
no curing
no electrical conductivity
applicable with aluminum (warning is for Conductonaut only!)
Specs:
Thermal Conductivity 8,5 W/mk
Thermal Resistance 0,0129 K/W
Electrical Conductivity 0 pS/m
Viscosity 110160 Pas
Specific Weight 2,6g/cm3
Temperature -150 °C / +200 °C
Capacity 1,5ml/3,9 g 3ml/7,8g
Thermal Grizzly Minus Pad 8 Thermal Pad, 120 × 20 × 0.5 mm, 2-Pack
Original price was: $ 16.$ 15Current price is: $ 15.
Thermal Grizzly Minus Pad 8 Thermal Pad 120x20mmx1mm Model TG-MP8-120-20-05-2R
Features:
The high performance thermal pads of the Thermal Grizzly Minus Pad series consist of a very elastic and flexible surface area with very high thermal conductivity, compensating for even the smallest of gaps between components. Available in a variety of different sizes and thicknesses.
High thermal conductivity
High compressibility
Electrical insulation
Specs:
Specifications minus pad 8: W/mK 8.0, temperature range: -100°C / +250°C
The minus pads 8 are available in the sizes of 30x30mm, 120x20mm, 100x100mm as well as in the thicknesses of 0,5mm, 1mm, 1,5mm, 2mm.
Thermal Grizzly TG-C-001-R – Conductonaut Liquid Metal Thermal Paste – 1 GRAM
$ 14
Thermal Grizzly Conductonaut liquid metal Thermal Paste 1 Gram Model TG-C-001-R
Features:
Our Conductonaut liquid metal thermal compound is designed for applications that require very high efficiency. Conductonaut is recommended for experienced users who are looking for a top performance product with best heat dissipation where temperature ranges are above 8 °C.
Ultra high thermal conductivity
Increased indium content
Easy application with synthetic needle
Thermal Grizzly Conductonaut is a liquid metal thermal compound based on a eutectic alloy. Our special mixture of metals like tin, gallium and indium, Conductonaut excels with a very high thermal conductivity and excellent long-term stability.
Specs:
Thermal Conductivity 73 W/mk
Viscosity 0,0021 Pas
Density 6,24g/cm3
Temperature 10 °C / +140 °C
Content 1 g
UPS PROLINK Super Fast Charging 650A 350WATT
$ 35
GENERAL
| Capacity | 650VA |
| Dimension (mm) | 286 x 96 x 138 (D x W x H) |
| Weight (kg) | 4.3 |
INPUT
| Voltage Range | 162 ~ 290VAC (Single boost) 140 ~ 300VAC (Double boost) |
| Frequency | 50Hz/60Hz (Auto-sensing) |
| Phase | Single + GND |
OUTPUT
| Voltage Range | 220-240VAC |
| Battery Mode | 220-240VAC |
| Frequency | 50Hz ±1% (Battery mode) |
| Waveform | Simulated sine wave (Battery mode) Sine wave (AC mode) |
| Transfer Time | 2ms typical |
BATTERY
| Type | 12V/8.2AH x 1 |
| Backup Time | 8 - 20 mins depending on load |
| Recharge Time | 2-4 hours recover to 90% capacity |
INTERFACE & INDICATORS
| Interface | RS232, USB port, RJ45/RJ11 (Optional) |
| Display | LED/LCD Optional |
| Alarm | Batt. Mode, low battery, overload, fault, etc. |
PROTECTION/MONITORING
| Short Circuit Protection | Yes (Line mode & battery mode) |
| Surge Protection | Yes |
| Alarm | Audible & Visual |
| Overload Protection | Line mode : 100 - 120% 1 min change to fault mode >120% change to fault mode immediatelyBattery mode : 100 - 120% 1 min change to fault mode >120% change to fault mode immediately |
| Intelligent Battery | Prevent overcharging of battery |
| Management | Protect battery and prolong battery life |
Real Panel
| 1. AC Mode Indicator Green LED Lighting 2. Battery Mode Indicator Battery Normal : Yellow LED Lighting and Blinking every 30s Battery Low : Yellow LED Lighting and Blinking every 2s 3. Overload and Fault Indicator Overload : Red LED Blinking every 2s Fault : Red LED Lighting 4. Power Switch 5. Power AC Input 6. Backup Outlets |
