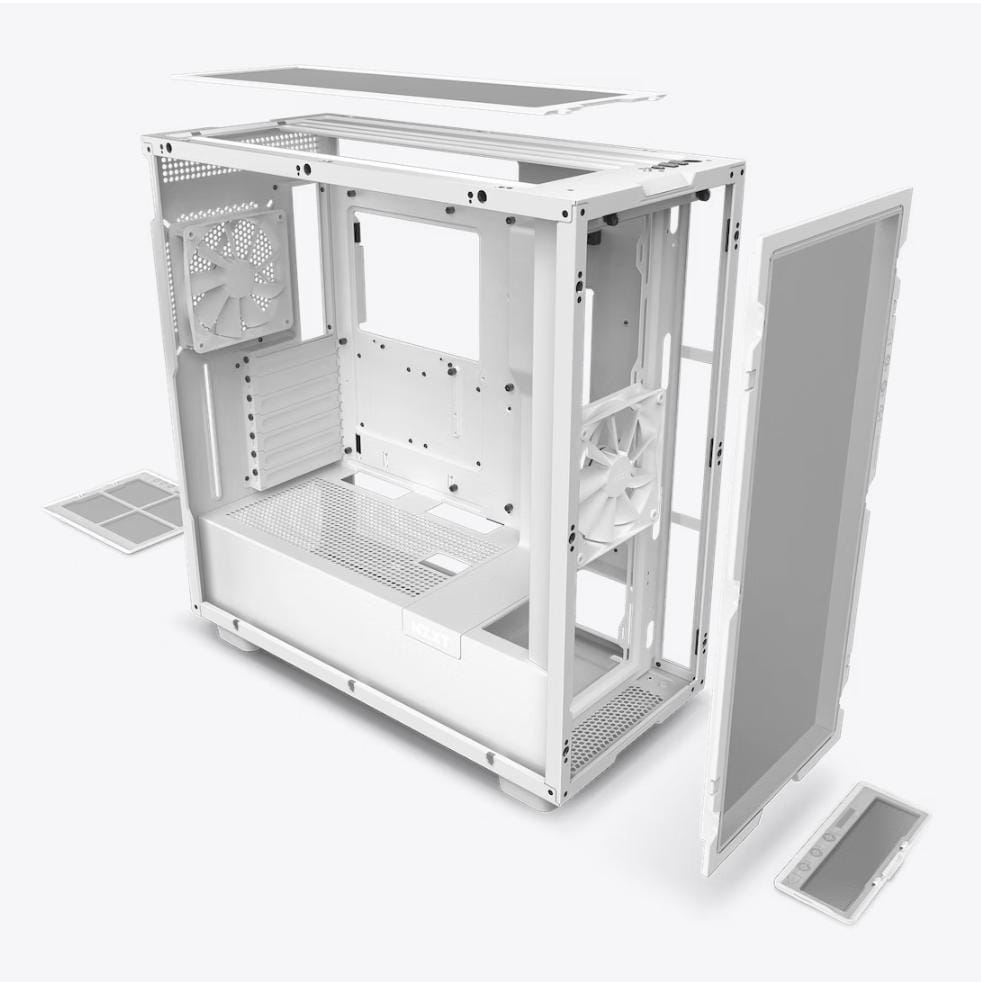

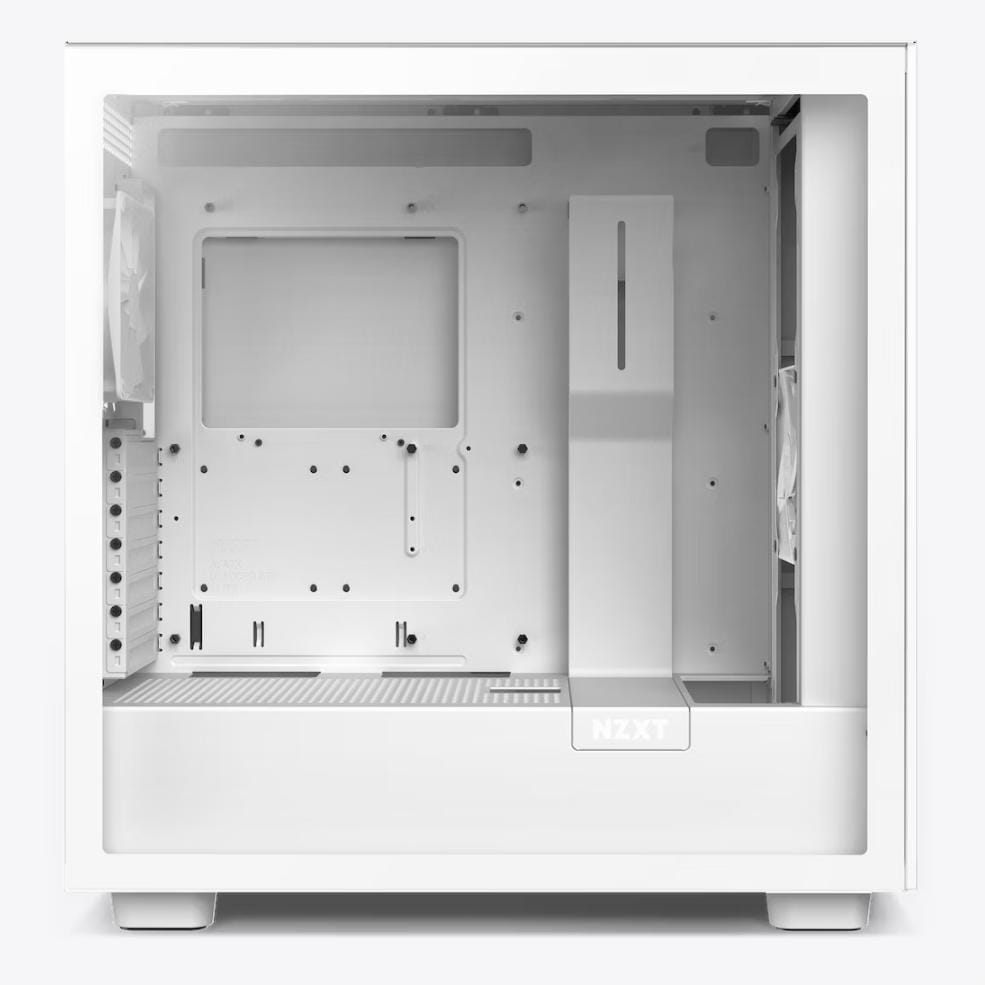

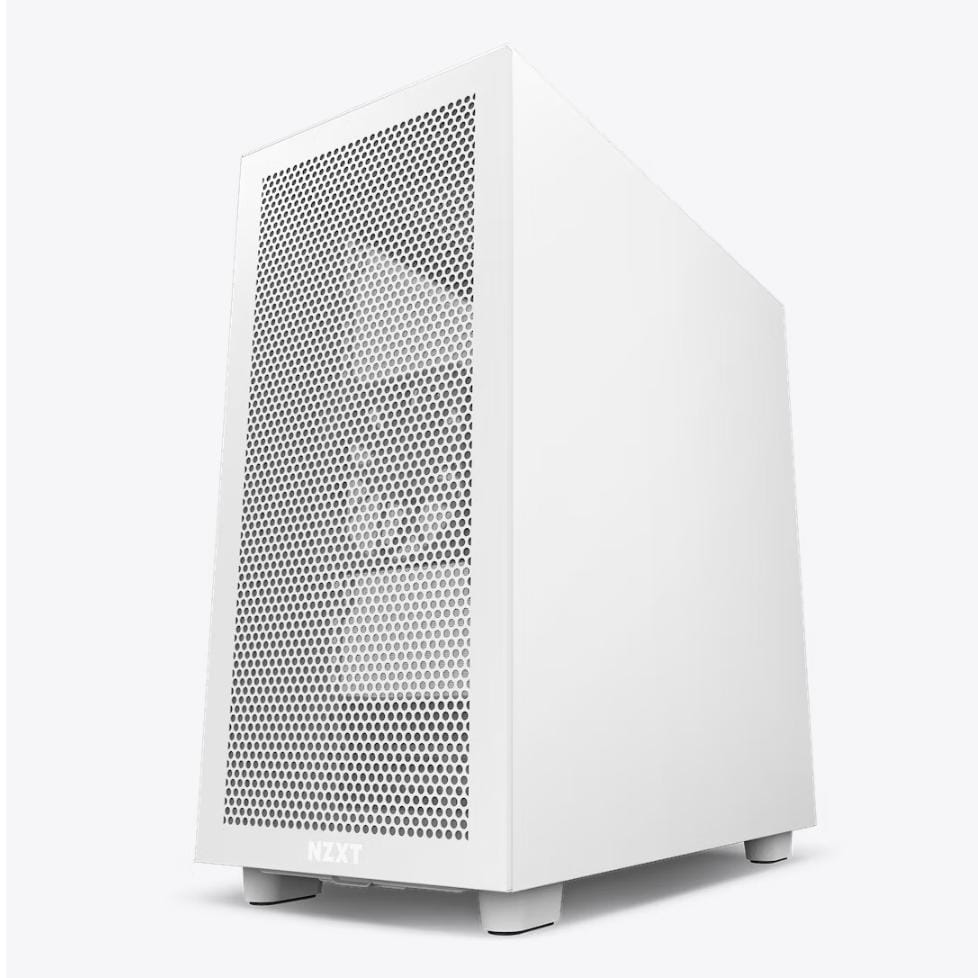

NZXT H7 FLOW MID-TOWER AIRFLOW WHITE CASE
$ 142
CM-H71FW-01
EY SPECS
- Motherboard Support:Mini-ITX, Micro-ATX, ATX
- Enclosure Type:Mid-Tower
- Case Material:SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)
DIMENSIONS
- Height:505mm (With Feet)
- Width:230mm
- Depth:480mm
- Weight:10.05 kg
COMPATIBILITY & CLEARANCE
- Max CPU Cooler Clearance:Up to 185mm
- Max GPU Clearance:Up to 400mm
- Front Radiator Clearance:60mm
- Top Radiator Clearance:30mm
- Cable Management:18-22mm

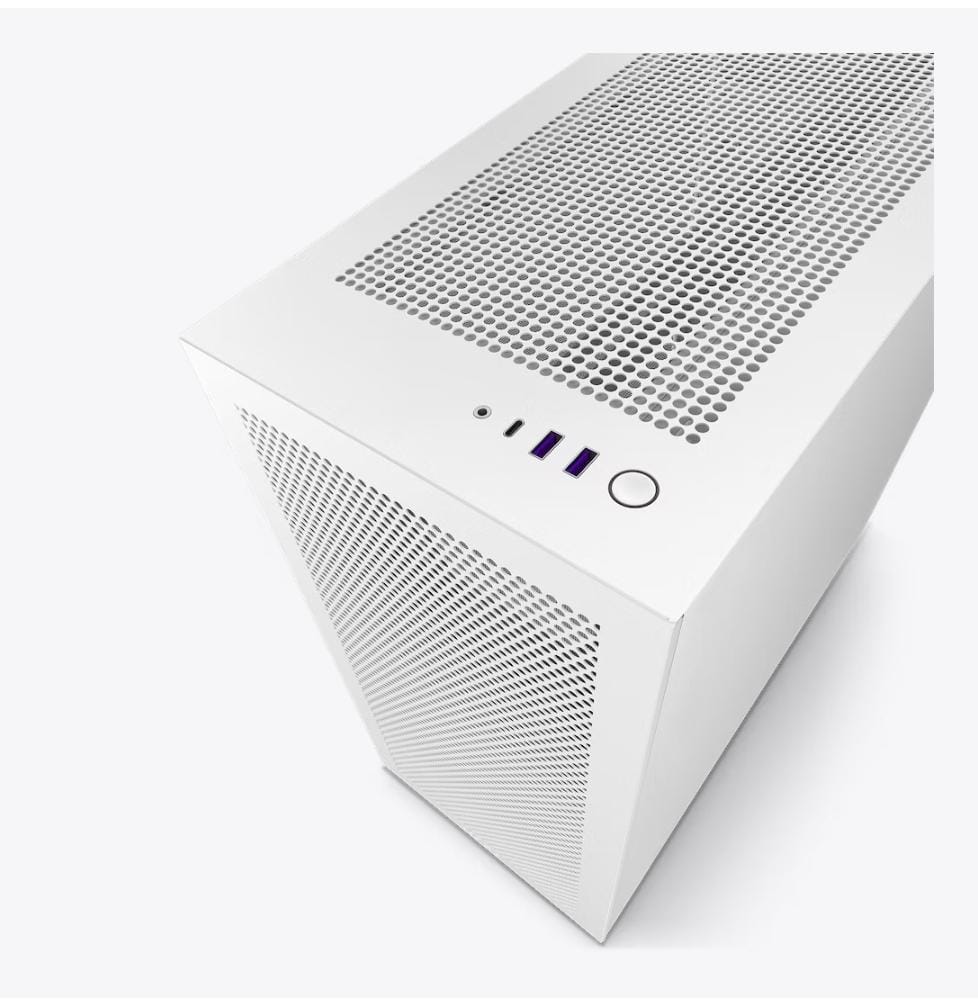

FRONT I/O PORTS
- USB 3.2 Gen 1 Type-A:2
- USB 3.2 Gen 2 Type-C:1
- Headset Audio Jack:1
EXPANSION SLOTS
- Standard:7
- Vertical:0
DRIVE BAYS
- 2.5″:4+2
- 3.5″:2
FAN SUPPORT
- Front:3 x 120mm / 3 x 140mm
- Top:3 x 120mm / 2 x 140mm
- Rear:1 x 120mm / 1 x 140mm
- Filters:All Air Intakes
RADIATOR SUPPORT
- Front:Up to 360mm with Push/Pull
- Top:Up to 360mm
- Rear:Up to 140mm
FAN SPECS
- Model:F120Q (Case Version)
- Speed:1200 ± 240RPM
- Airflow:62.18 CFM
- Static:1.05 mm – H2O
- Noise:25.1 dBA
- Fan Connector:3-pin
20
People watching this product now!
SKU:
CM-H71FW-01
Categories: Computer Cases, COMPUTER PARTS
Additional information
SHIPPING AND DELIVERY
Our delivery charges are calculated based on the distance between our warehouse and your location We strive to provide the best possible delivery experience for our customers and are committed to delivering your products as quickly and efficiently as possible If you have any questions or concerns regarding our delivery services, please feel free to contact us Our customer service team is always available to assist you and provide information or support you may need
Related products
COOLER MASTER Riser Cable PCIE 3.0 X16 VER. 2
$ 26
Flex your Graphics Muscle
The Cooler Master Riser Cable PCIe 3.0 x16 Ver. 2 - 300mm comes revised for maximum flexibility and durability. High quality plastics grant increased cable flexibility and strength for the tightest PCI card installations, while the heavy-duty shielding prevents electromagnetic interference from degrading signal quality. A stainless steel PCI slot adds extra rigidity to the riser to support even the largest and heaviest graphics cards. The IPC4101D compliant PCB provides the best in class performance under high thermal loads and cable flex than any of the non-compliant competitor riser cables in the market.

Ultra Durable PCB
The IPC4101D compliant PCB provides the best in class performance under high thermal loads, cable flex, and moisture resistance than any of the non-compliant competitor riser cables in the market.

Heavy duty shielding
EMI shielded 28/30 AWG copper wires ensure minimal signal delay and electromagnetic interference-free operation.

Gold pin connections
Gold PCI pins allow maximum electrical conductivity with a rated 110g of insertion force per contact pair for high durability.

Protective ABS casing
UV resistant ABS casing protects cable connection points from rough handling.
Freely express yourself: Download the 3d printable files (.stl) and create your own customized design.

Stainless steel-reinforced PCI slot
Nickel-plated stainless steel PCI slot adds rigidity for superior card retention for even the heaviest PCI card installations.

Ultra-flexible cable sleeves
TPE cable sleeves allow for maximum flexibility and durability for the tightest cable routing jobs.
- Model Number
- MCA-U000C-KPCI30-300
- Units per package
- 1 piece per package
- Available Color(s)
- Black
- Compatibility
- PCI-E 3.0
- Certifications
- EMI, IPC4101D/21
- Materials
- PCBA, Copper Wire
- Insulation Materials
- PE, TPE
- Other Materials
- ABS, Stainless Steel, Nickel, Gold, Brass
- Connectors
- PCI-E x16 Male to PCI x16 90° Female
- Cable Length
- 300mm
- Contact Current Rating
- 1.1A per contact pin
- Operating Temperature
- -20° to +100° Celsius
- Weight
- 110g
- Warranty
- 1 year
- EAN Code
- 4719512101537
- UPC Code
- 884102073830
- Series
- Others
- Note
- This product is only compatible for devices that support the PCI-E 3.0 specification. If you use this product with a motherboard that supports PCI-E 4.0, please enter into BIOS option and select PCI-E 3.0 before installation.
Document
Motherboard Biostar H81MHV3 LGA1150, H81, DDR3
$ 83
hipset Intel H81
CPU SUPPORT Intel Core i7 LGA 1150 Processor
Intel Core i5 LGA 1150 Processor
Intel Core i3 LGA 1150 Processor
Intel Pentium LGA 1150 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
MEMORY Support Dual Channel DDR3 1600/1333/1066 MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 16GB Memory
EXPANSION SLOT 1 x PCI-E x16 2.0 Slot
1 x PCI-E x1 2.0 Slot
STORAGE 2 x SATA3 Connector
2 x SATA2 Connector
USB 2 x USB 3.0 Port
2 x USB 2.0 Port
2 x USB 2.0 Header
LAN Realtek RTL8111G - 10/100/1000 Controller
INTEGRATED VIDEO By CPU model
Supports DX11.1
CODEC Realtek ALC662 6-Channel HD Audio
REAR I/O 1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.0 Port
2 x USB 2.0 Port
1 x HDMI Connector
1 x VGA Port
1 x RJ-45 Port
3 x Audio Connector
INTERNAL I/O 2 x USB 2.0 Header
2 x SATA3 6Gb/s Connector
2 x SATA2 3Gb/s Connector
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
1 x System Fan Header
1 x Serial Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 19cm x 17cm ( W x L )
OS SUPPORT Support Windows 7 / 8 / 8.1 / 10(x64)
BUNDLE SOFTWARE BIO-Remote2
Smart Speed LAN
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
FEATURES Windows 8 Ready
Supports Solid capacitor
Supports Charger Booster
Supports BIOS Online Update
PCIe Riser Mining Card,Awakingdemi NGFF M.2 to USB 3.0
$ 4
- he main control board uses the direct power supply mode of PCI-E interface, and does not need to connect the power line again
- The card slot is imported to ensure a better connection.
- A high quality connector is used for the card slot to make the card contact well.
- Multi layer shielded wire for PCI-E connector.
- The PCI-E connector is relatively wear-resistant and increases electrical conductivity.
Thermal Grizzly Carbonaut Thermal Pad, 32 × 32 × 0.2 mm
The high-tech carbon thermal pads of the Thermal Grizzly Carbonaut series can be used excellently as an alternative for thermal pastes from the medium performance segment. They have the exclusive advantage of being reusable, and they have a very elastic and adaptable surface with very high thermal conductivity. Even the smallest component differences can be compensated very well.
Maximum thermal conductivity
Constantly high performance
Reusable
Doesn't dry out
Flexible and easy to use
The Thermal Grizzly Carbonaut Pad is a thermal conduction pad made of carbon fiber. Its specially developed polymer gives the thermal pad its flexibility and its “soft gap filler” properties. The carbon fiber structure ensures excellent thermal conductivity. Thermal Grizzly Carbonaut is easily reusable. In addition, the Thermal Grizzly Carbonaut has a very high thermal conductivity, which it can develop even with very little pressure. The Thermal Grizzly Carbonaut remains constant in heat transfer performance.
Note: Carbonaut is electrically conductive.The Thermal Grizzly Carbonaut Pad is a thermal conduction pad made of carbon fiber. Its specially developed polymer gives the thermal pad its flexibility and its “soft gap filler” properties. The carbon fiber structure ensures excellent thermal conductivity. Thermal Grizzly Carbonaut is easily reusable. In addition, the Thermal Grizzly Carbonaut has a very high thermal conductivity, which it can develop even with very little pressure. The Thermal Grizzly Carbonaut remains constant in heat transfer performance. Note: Carbonaut is electrically conductive.
Thermal conductivity 62.5 W / mk
Strength 0.2mm
Temperature -250 ° C / +150 ° C
Model: TG-CA-32-32-02-R
Thermal Grizzly Hydronaut Thermal Paste 1.5 ml 3.9 GRAM
$ 16
Thermal Grizzly Hydronaut 1.5ml / 3.9g Thermal Paste Model TG-H-015-R
Features:
Hydronaut can be used for overclocking due to it’s excellent thermal conductivity, but it was created specifically for users with larger-scale cooling solutions, who are looking for a quality product with an excellent price-performance ratio, for example for their water cooling system.
suited for Overclocking
excellent thermal conductivity
no curing
silicone-free
no electrical conductivity
applicable with aluminum (warning is for Conductonaut only!)
Specs:
Thermal Conductivity 11,8 W/mk
Thermal Resistance 0,0076 K/W
Electrical Conductivity 0 pS/m
Viscosity 140-190 Pas
Speific Weight 2,6g/cm3
Temperature -200 °C / +350 °C
Capacity 1,5ml / 3,9g – 3ml / 7,8g
Thermal Grizzly Kryonaut Thermal Paste, 1 GRAM
Thermal Grizzly Kryonaut Thermal Paste 1 Gram Model TG-K-001-RS / ZUWA-145
Features:
Kryonaut thermal grease was created especially for the extremely demanding applications and the highest expectations of the overclocking community. Kryonaut is also highly recommended as a top product for critical cooling systems in the industrial environment.
designed for Overclocking
excellent thermal conductivity
no curing
long-term durability
no electrical conductivity!!!
applicable with aluminum (warning is for Conductonaut only!)
Specs:
Thermal Conductivity 12,5 W/mk
Thermal Resistance 0,0032 K/W
Electrical Conductivity 0 pS/m
Viscosity 130-170 Pas
Specific Weight 3,7g/cm3
Temperature -250 °C / +350 °C
Capacity 1,5ml / 5,55 g 3ml / 11,1g
UPS PROLINK Super Fast Charging 650A 350WATT
$ 35
GENERAL
| Capacity | 650VA |
| Dimension (mm) | 286 x 96 x 138 (D x W x H) |
| Weight (kg) | 4.3 |
INPUT
| Voltage Range | 162 ~ 290VAC (Single boost) 140 ~ 300VAC (Double boost) |
| Frequency | 50Hz/60Hz (Auto-sensing) |
| Phase | Single + GND |
OUTPUT
| Voltage Range | 220-240VAC |
| Battery Mode | 220-240VAC |
| Frequency | 50Hz ±1% (Battery mode) |
| Waveform | Simulated sine wave (Battery mode) Sine wave (AC mode) |
| Transfer Time | 2ms typical |
BATTERY
| Type | 12V/8.2AH x 1 |
| Backup Time | 8 - 20 mins depending on load |
| Recharge Time | 2-4 hours recover to 90% capacity |
INTERFACE & INDICATORS
| Interface | RS232, USB port, RJ45/RJ11 (Optional) |
| Display | LED/LCD Optional |
| Alarm | Batt. Mode, low battery, overload, fault, etc. |
PROTECTION/MONITORING
| Short Circuit Protection | Yes (Line mode & battery mode) |
| Surge Protection | Yes |
| Alarm | Audible & Visual |
| Overload Protection | Line mode : 100 - 120% 1 min change to fault mode >120% change to fault mode immediatelyBattery mode : 100 - 120% 1 min change to fault mode >120% change to fault mode immediately |
| Intelligent Battery | Prevent overcharging of battery |
| Management | Protect battery and prolong battery life |
Real Panel
| 1. AC Mode Indicator Green LED Lighting 2. Battery Mode Indicator Battery Normal : Yellow LED Lighting and Blinking every 30s Battery Low : Yellow LED Lighting and Blinking every 2s 3. Overload and Fault Indicator Overload : Red LED Blinking every 2s Fault : Red LED Lighting 4. Power Switch 5. Power AC Input 6. Backup Outlets |
